Ford Ranger/Explorer Fabricated Pitman Arm

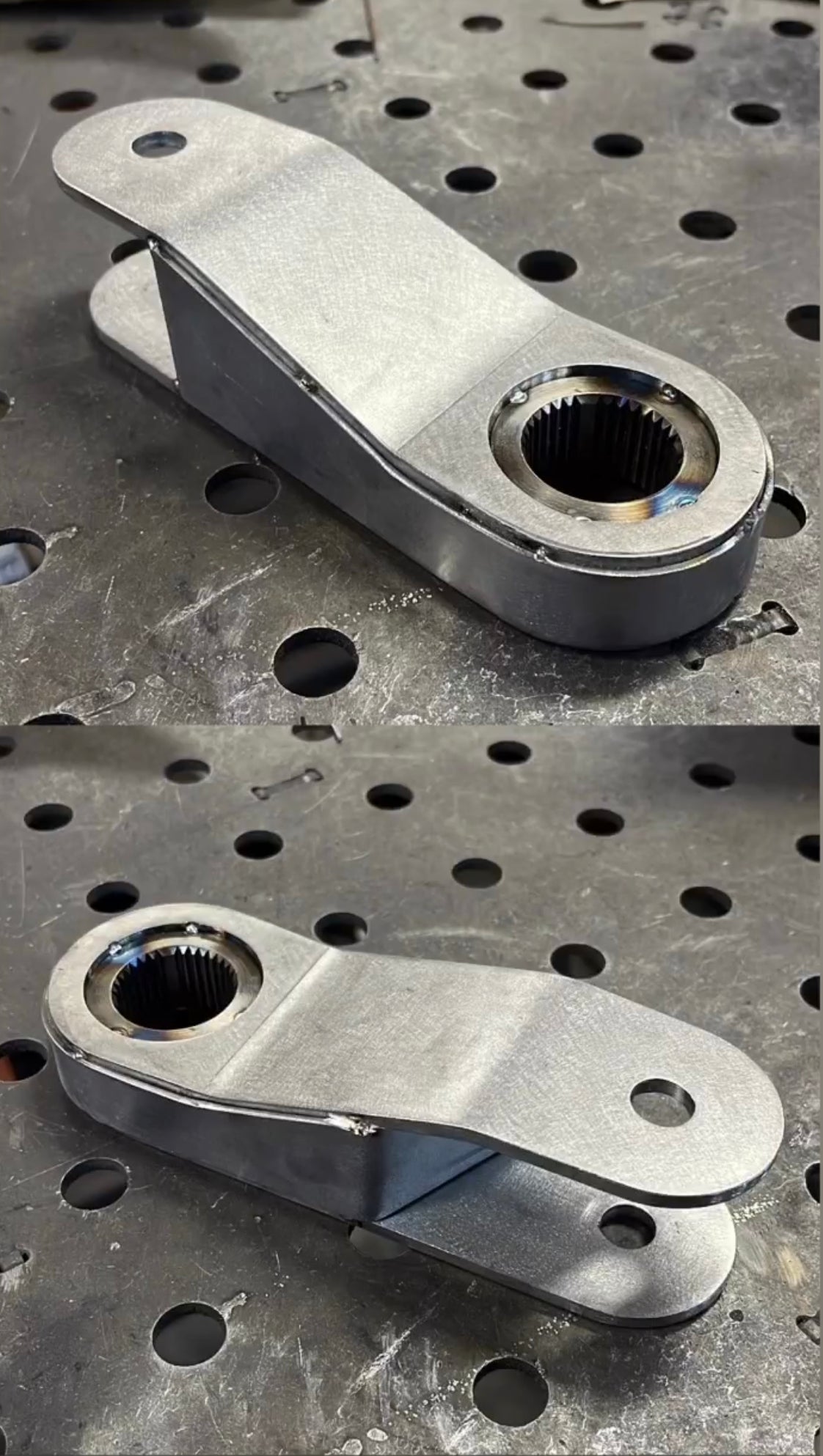

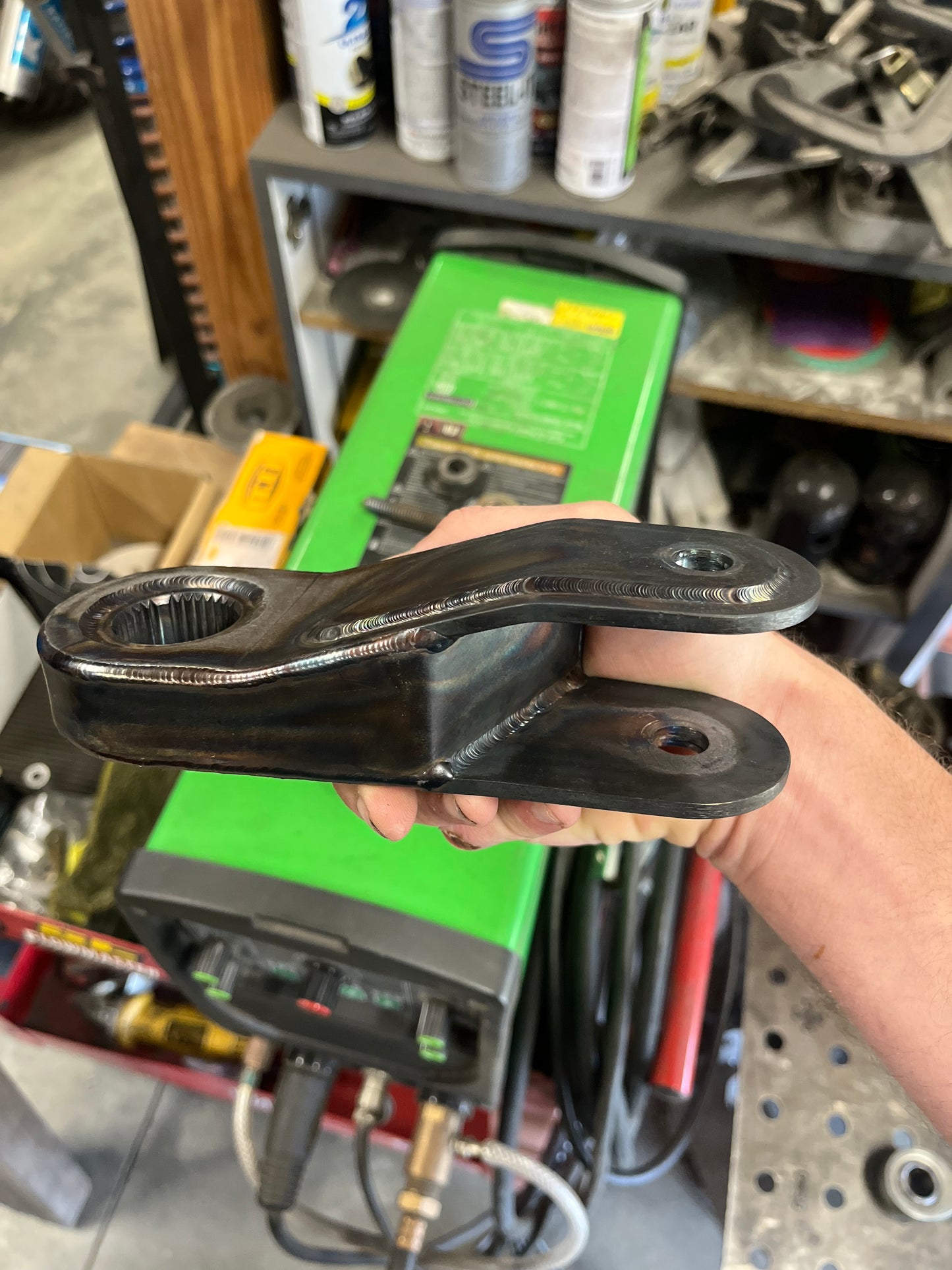

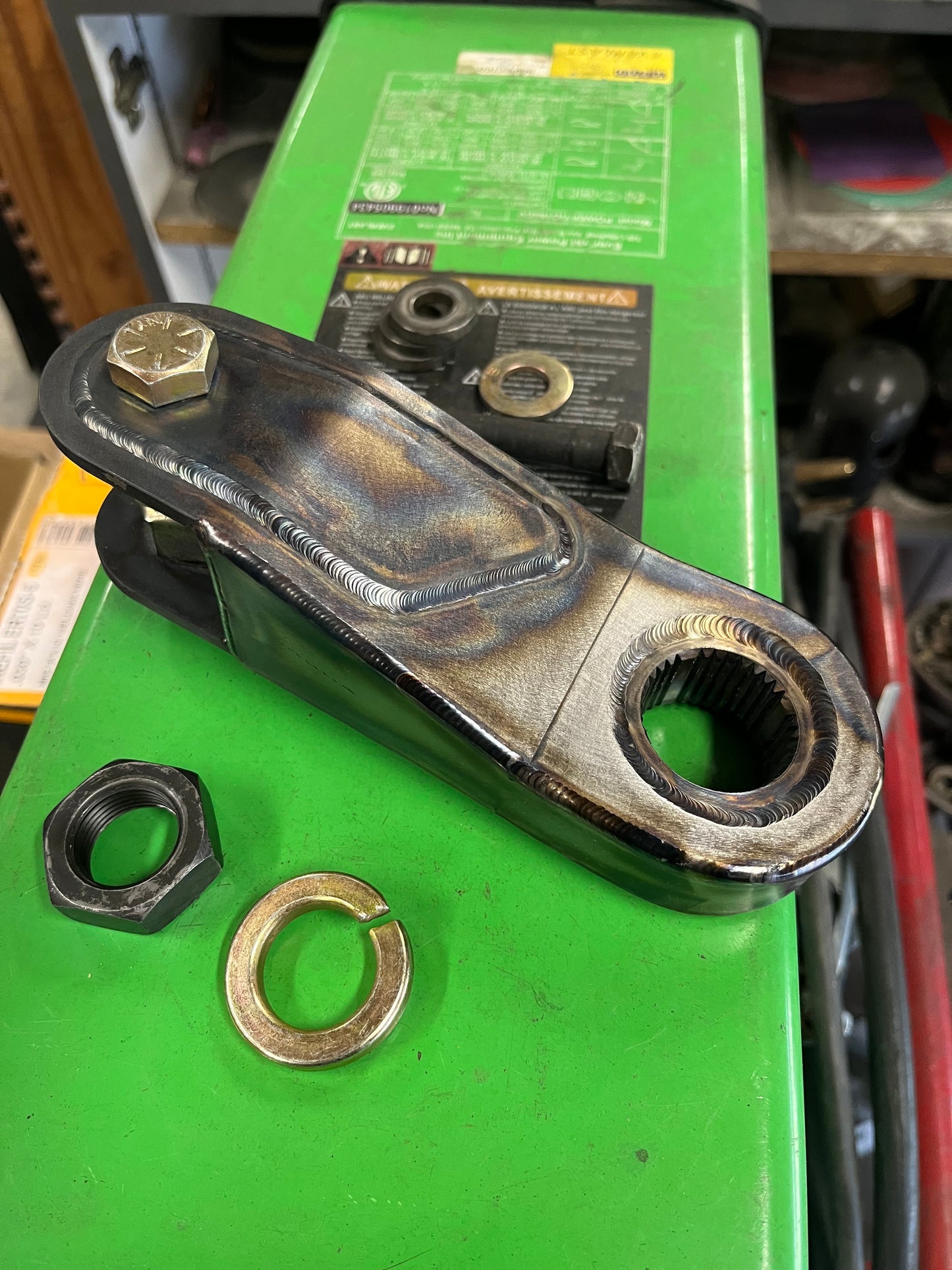

Built for 90's Rangers/Explorers driven hard on and off-road, this pitman arm is a must for anyone wanting to reinforce a key weak point in their steering system. This fully fabricated, 100% TIG welded pitman arm puts your steering linkage in double shear to accept a 7/8's heim joint using a 1/2" bolt when upgrading from factory steering to single or dual swing steering options. Our fabricated pitman arm also wraps around the entire broached end where it connects to the steering box to prevent a common breaking point on the factory pitman arms.
